Apl210 Limit Switch

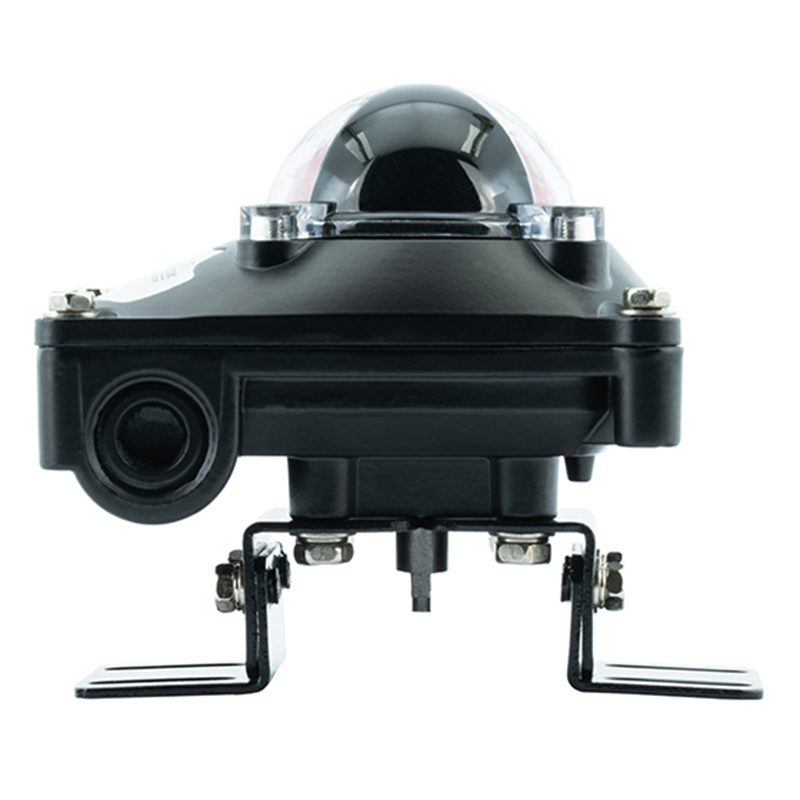

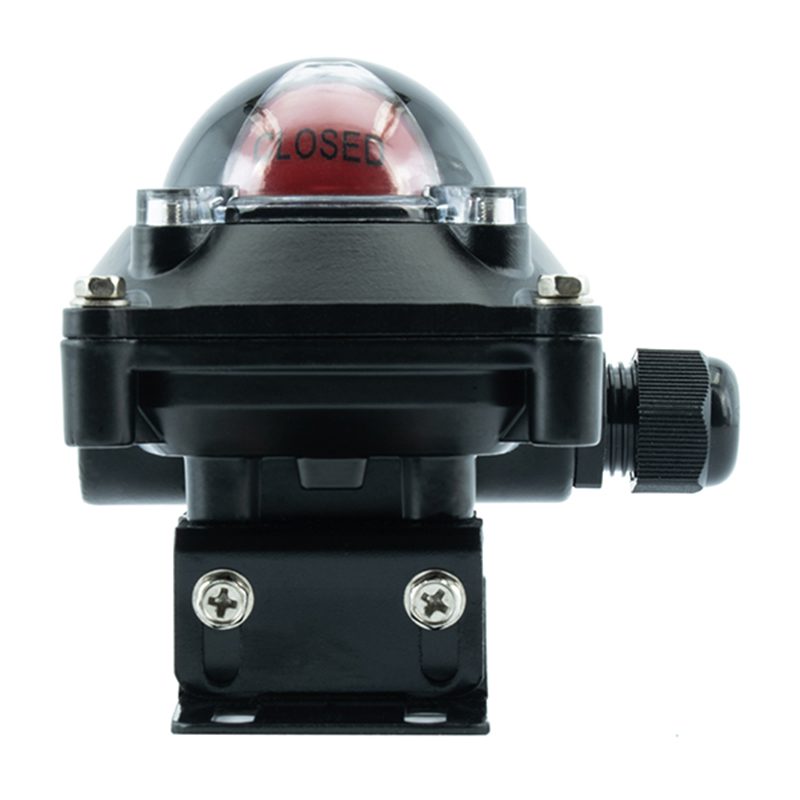

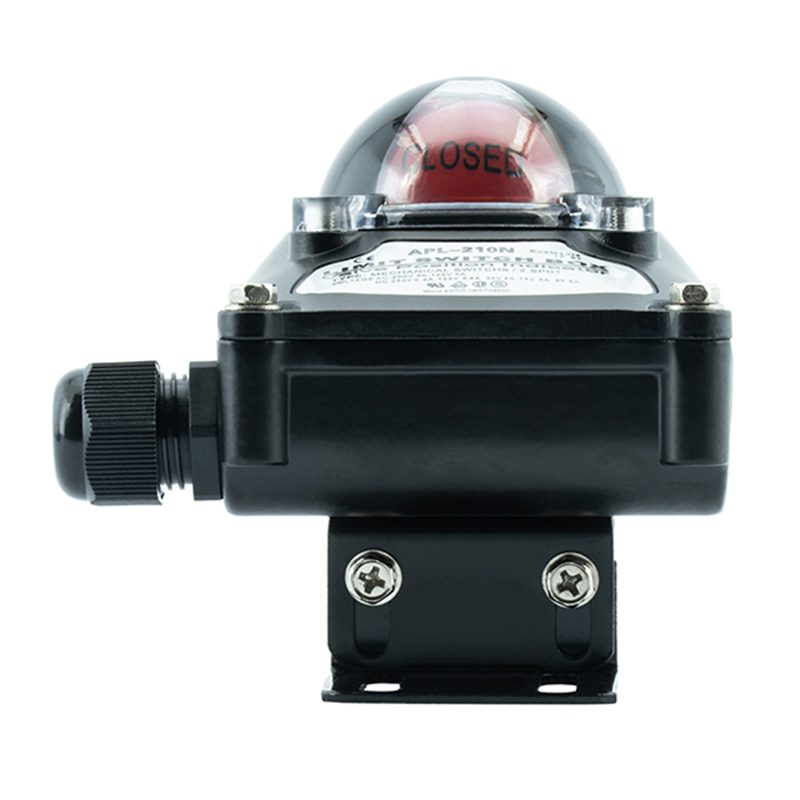

APL210N limit switch box is a field instrument for detecting valve status. It outputs the open or closed position of the valve as a switch signal, which is received by the program controller or sampled by the computer. After confirmation, the next step of the program is executed. This product can also be used as an important valve interlock protection and remote alarm indication in the self-control system.

The APL210N limit switch box is based on the detection of valve position angle displacement. It rotates the transmission shaft through coaxial connectors or feedback rods, causing the cam to trigger the micro switch, thereby closing or opening the contacts of the switch component. The switch signal is transmitted to the outside through the wiring terminal and displayed locally through the indicator
